Recently I’ve been doing a lot of research into different Acrylic suppliers. Although there are plenty of places to get solid colors, I really wanted to start trying some more unique patterns – in particular, I’ve been looking for things that emulate mother of pearl. A lot of what I make is jewelry – meaning even when they’re a bit pricey, I’ll get a lot of use out of a sheet. The one thing I did not test was engraving – I didn’t see the point. Why would you engrave on a patterned sheet? You’d never really see it agains the complex patterns unless you painted it, and it takes way from the beauty in my opinion. I’m sure there is an exception to this thought, but it wasn’t on my radar at the time of testing; I’m confident they all engrave exactly as you’d expect they would.

ABOUT iMATERIALS

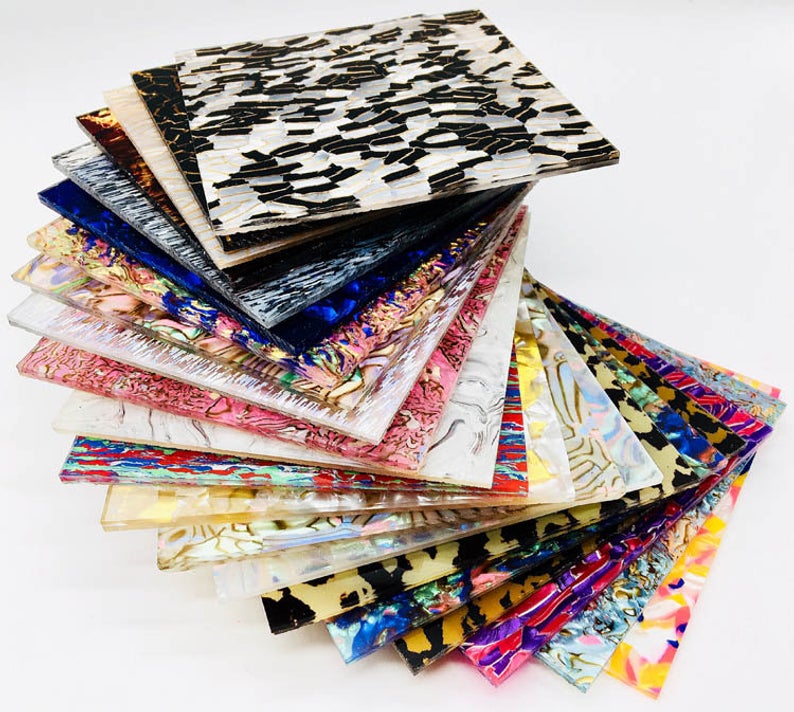

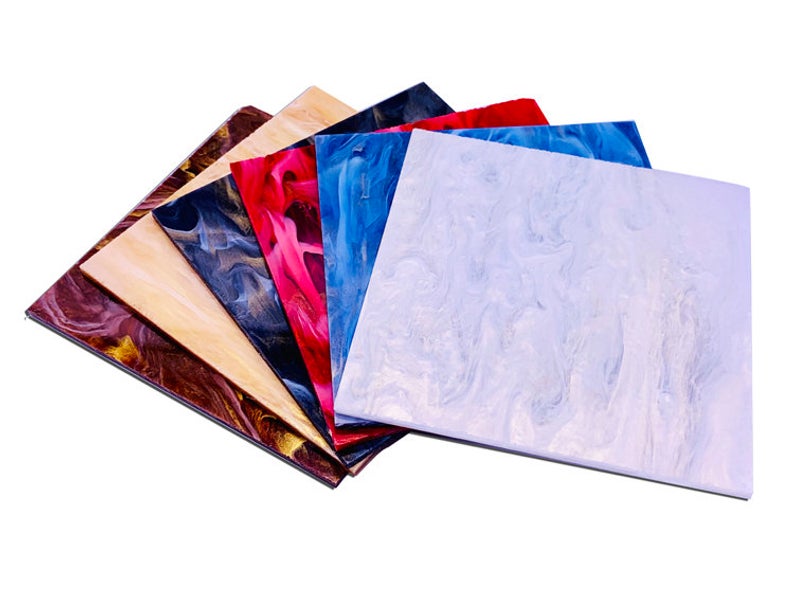

I started with a 25 piece sample pack from iMaterials. They were kind enough to let me choose what I wanted in my sample pack so I tried to select a wide variety from their store. They had a bit of everything – glitter, shimmer, swirl, celluloid etc. I made sure to ask and was told that ALL of the sheets they carry are cast acrylic with the exception of any mirrored sheets. The only other material to keep an eye on is the celluloid patterned sheets – these are a sandwiched product where the core is a sheet of printed celluloid. Celluloid can be cut on the laser but it is HIGHLY flammable on its own so keep an eye on these sheets when cutting.

THE MATERIALS

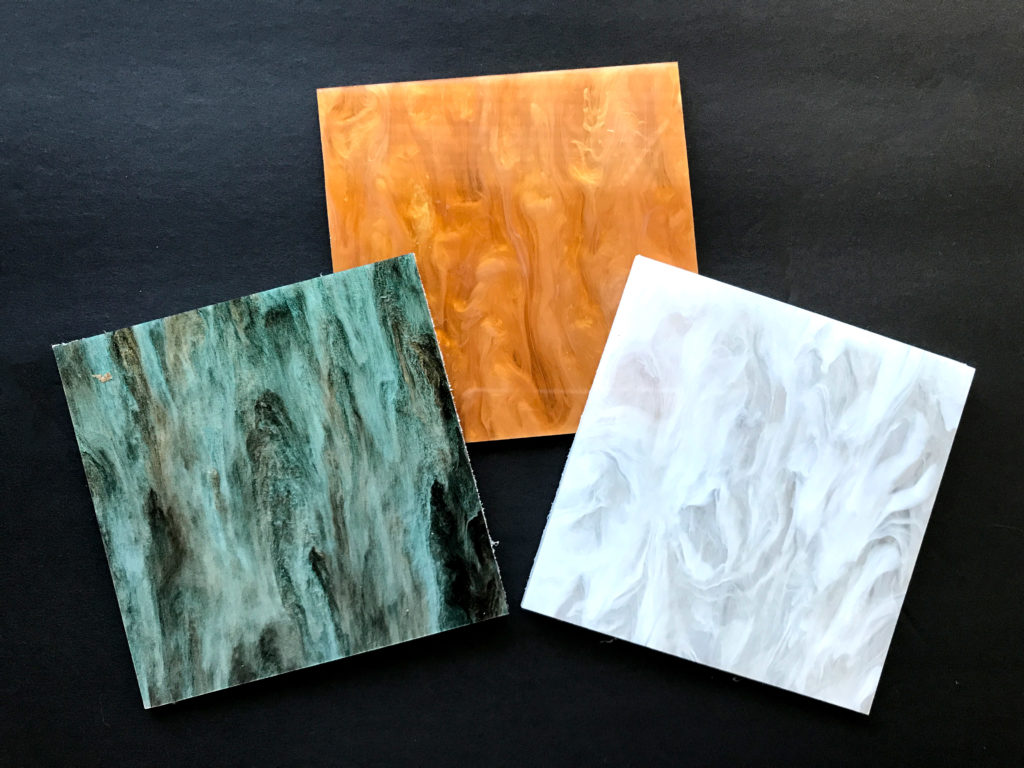

So here is a list of what I purchased. This section features photos from both the seller and myself.

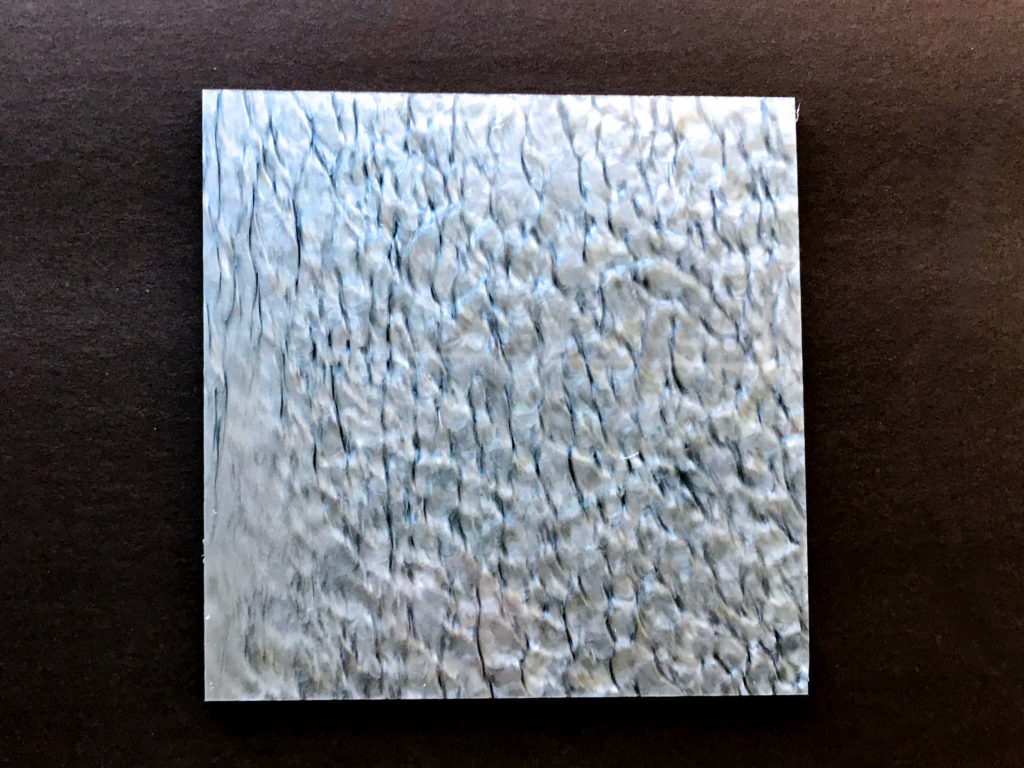

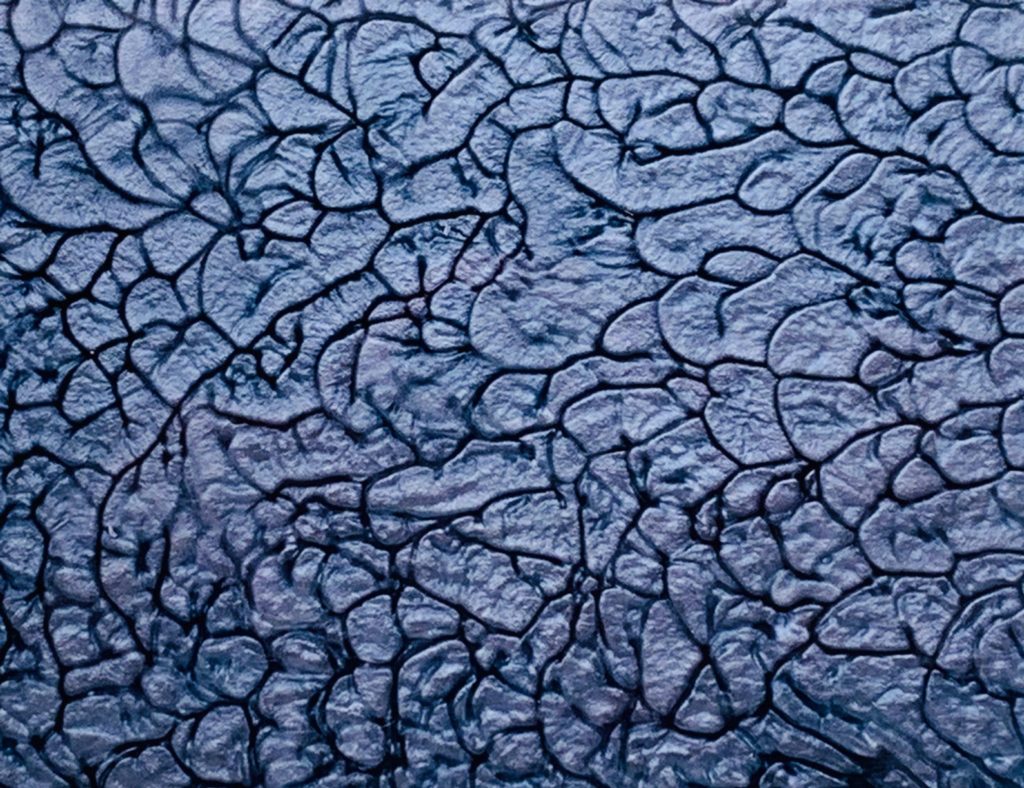

Pearlescent Python Pattern Sheet –
Lead Grey (MW09)

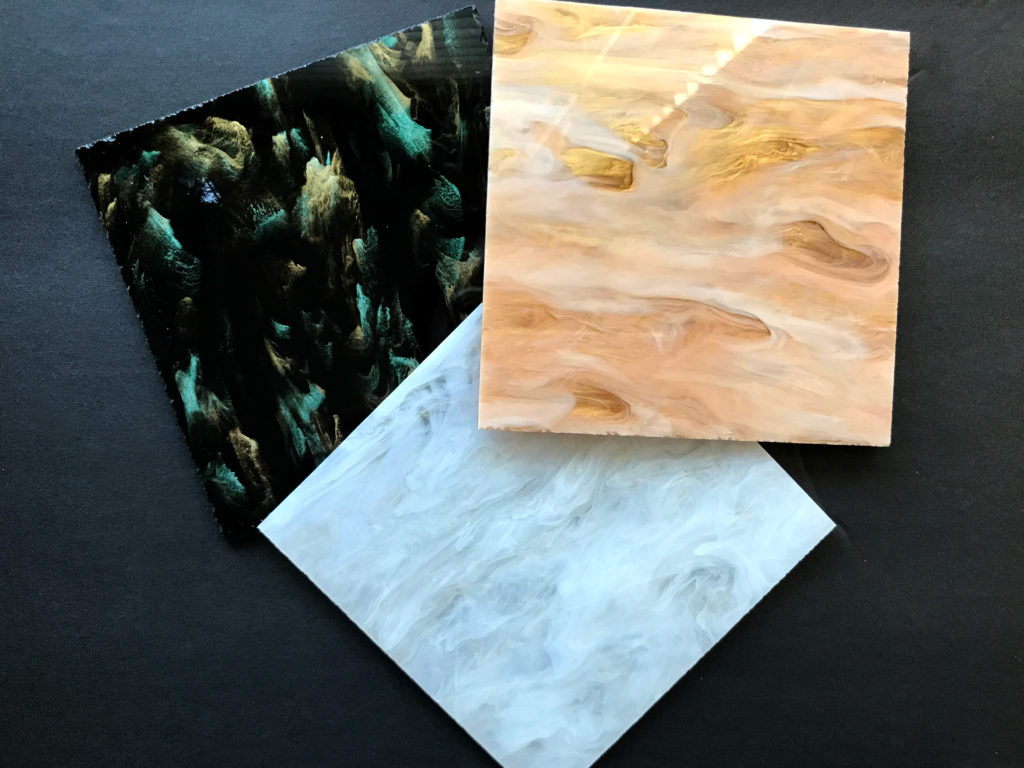

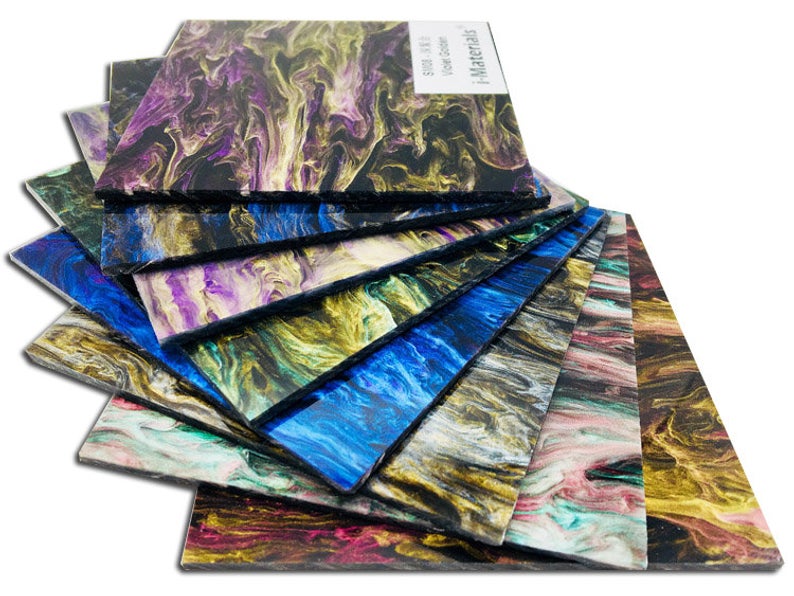

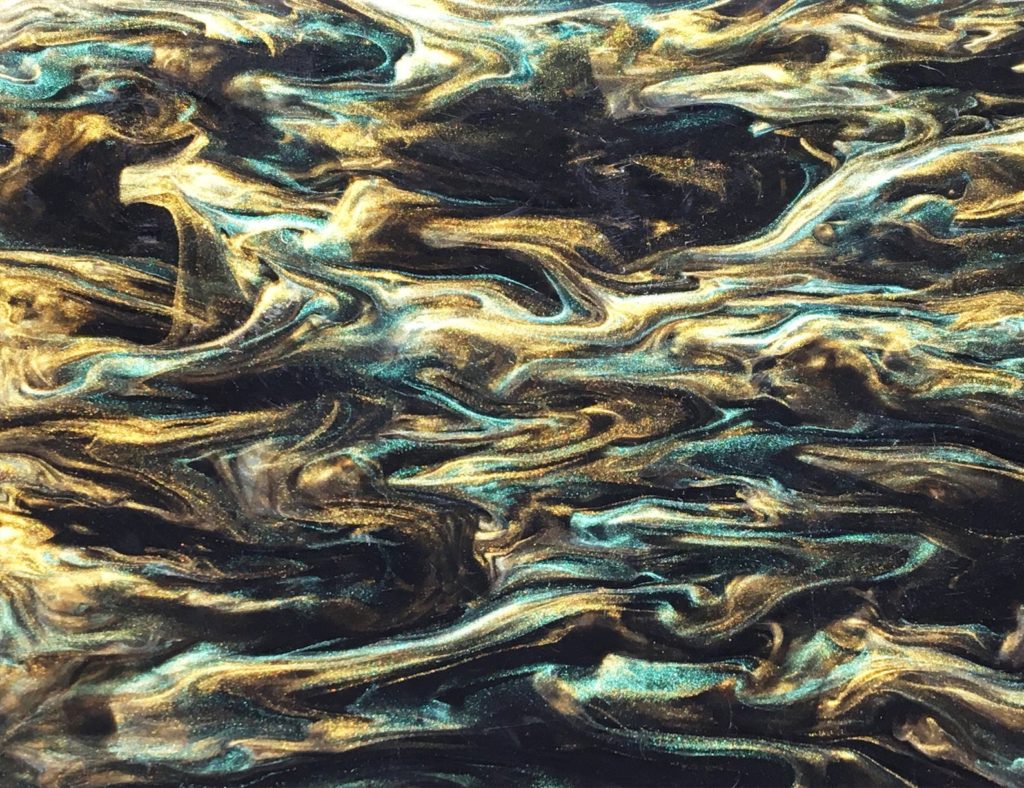

Multi-Colors Smoky Sheets –
SM02- Teal Golden

Multi-Colors Phoenix Sheets –

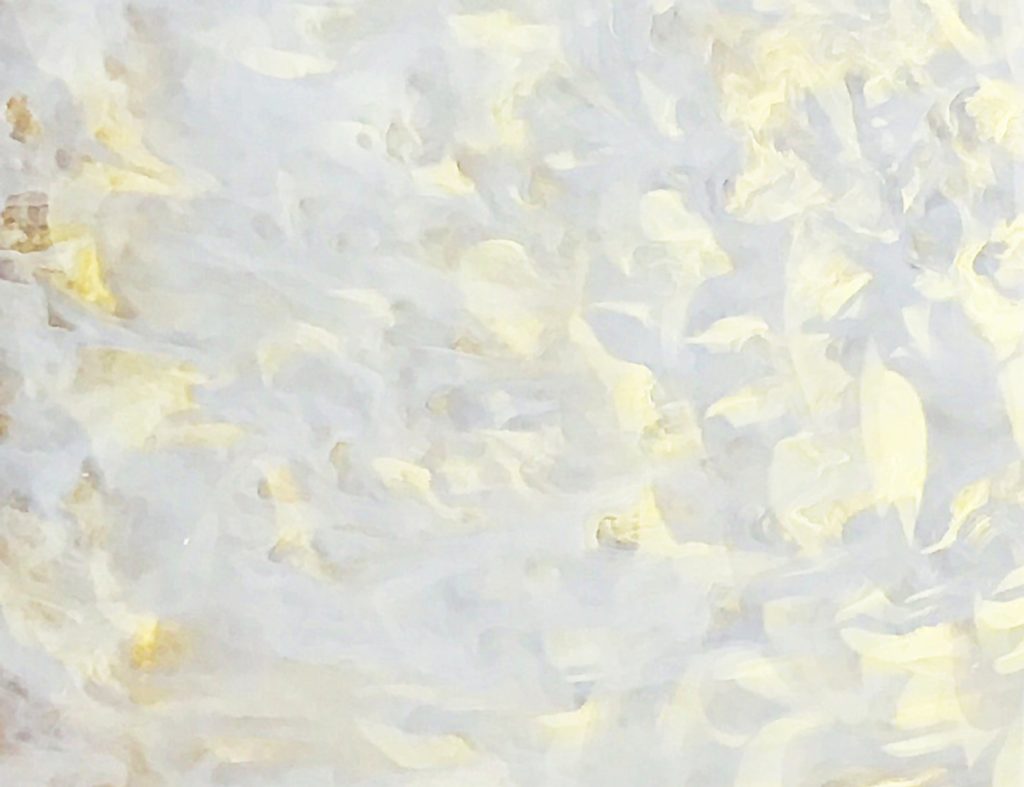

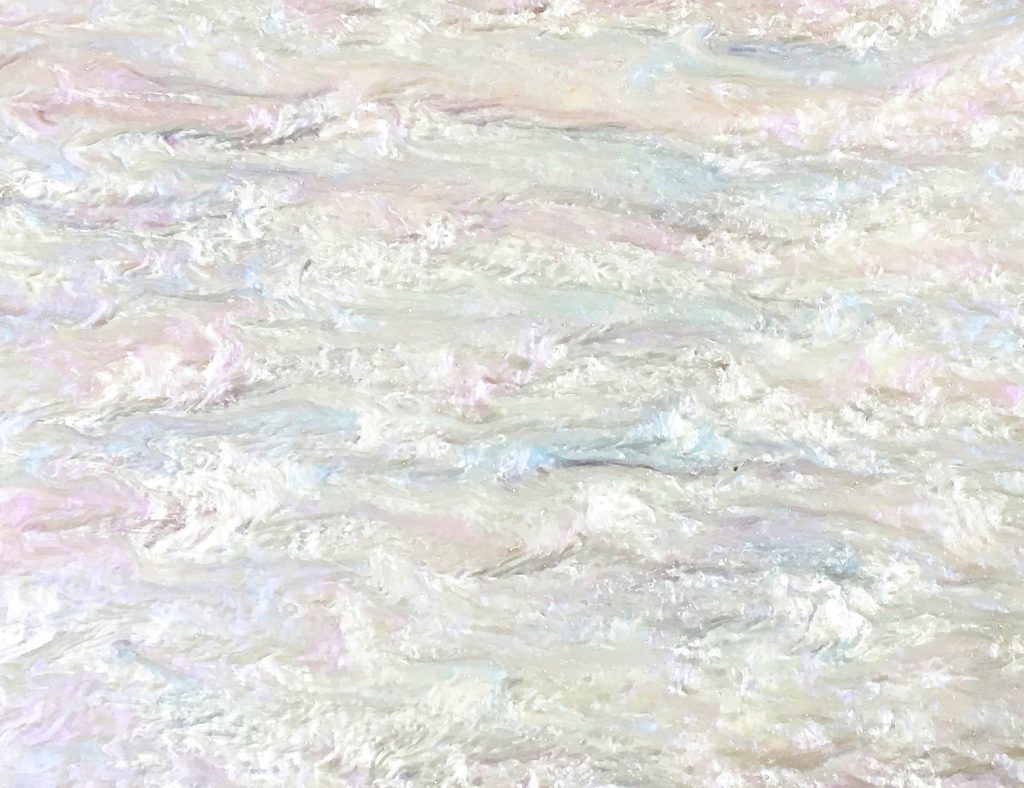

PH01 -White

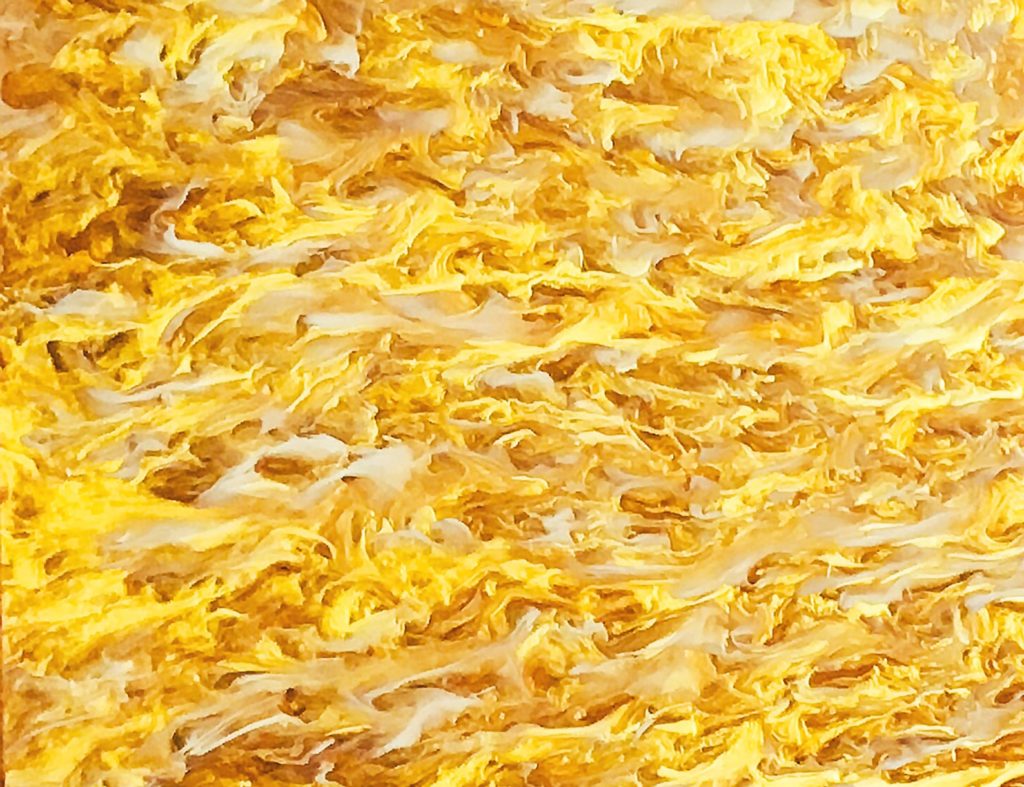

PH02-Golden

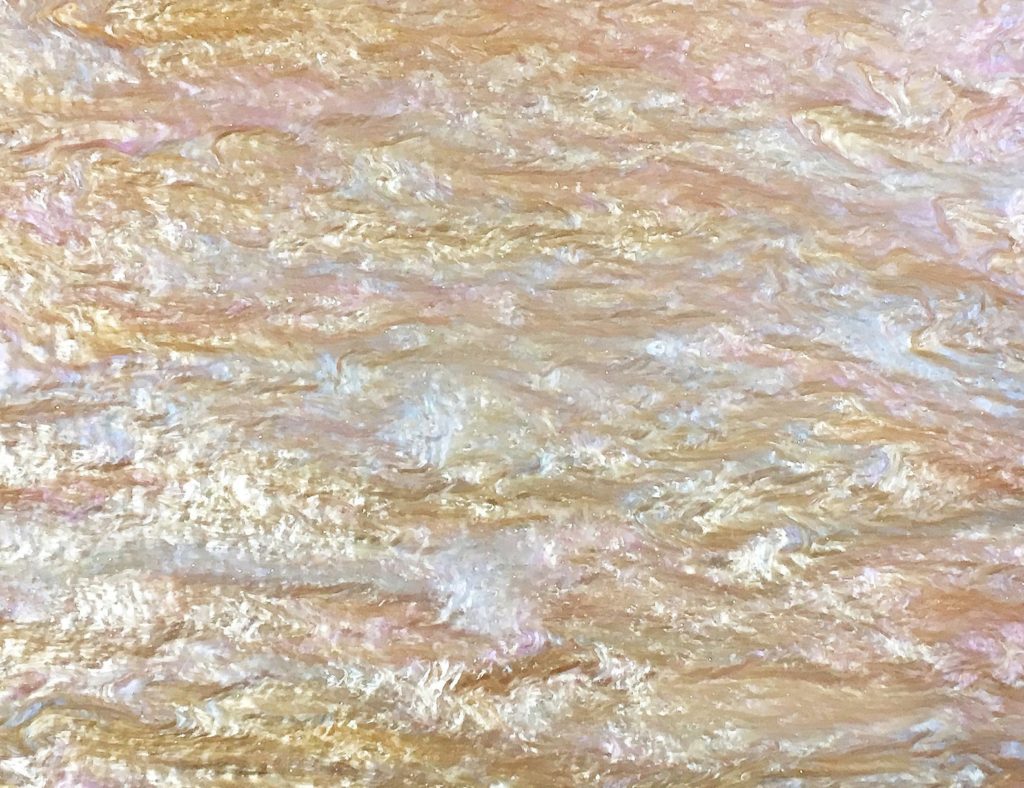

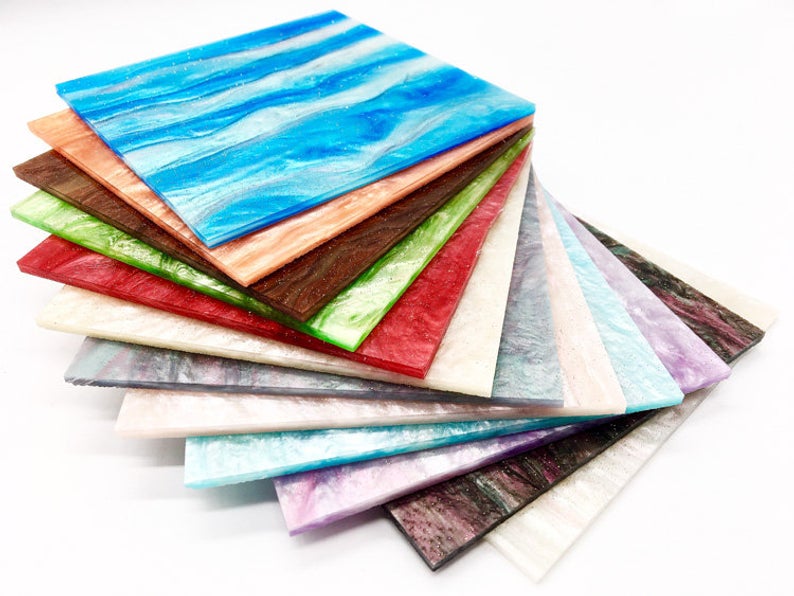

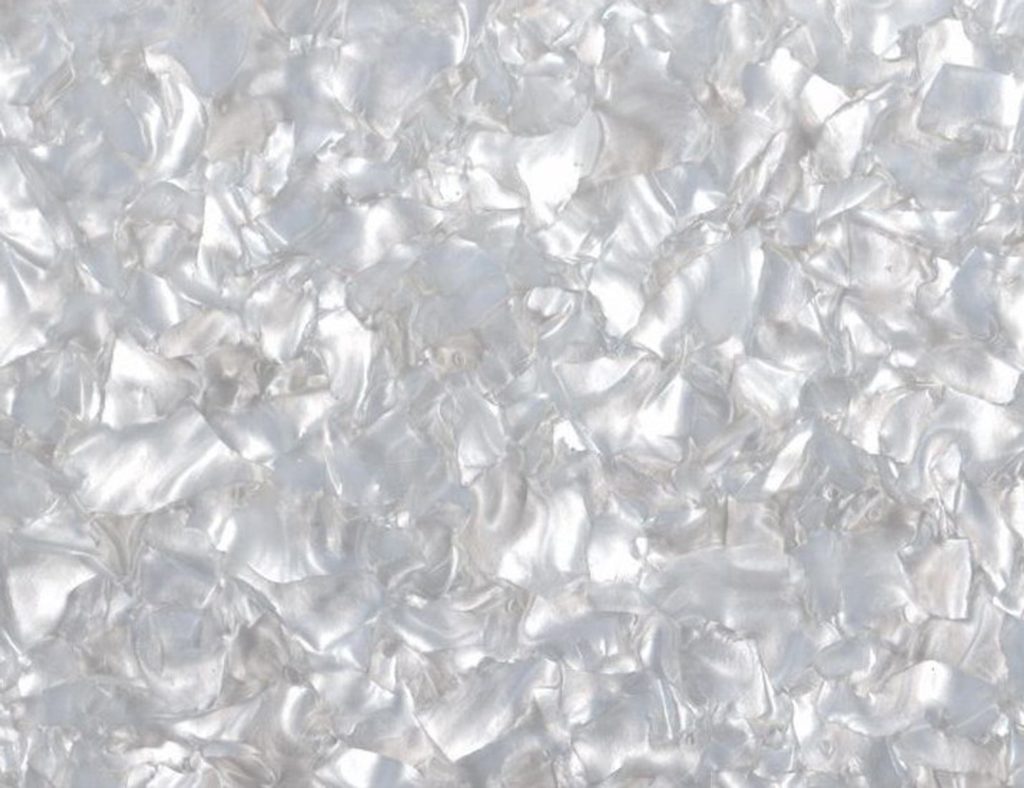

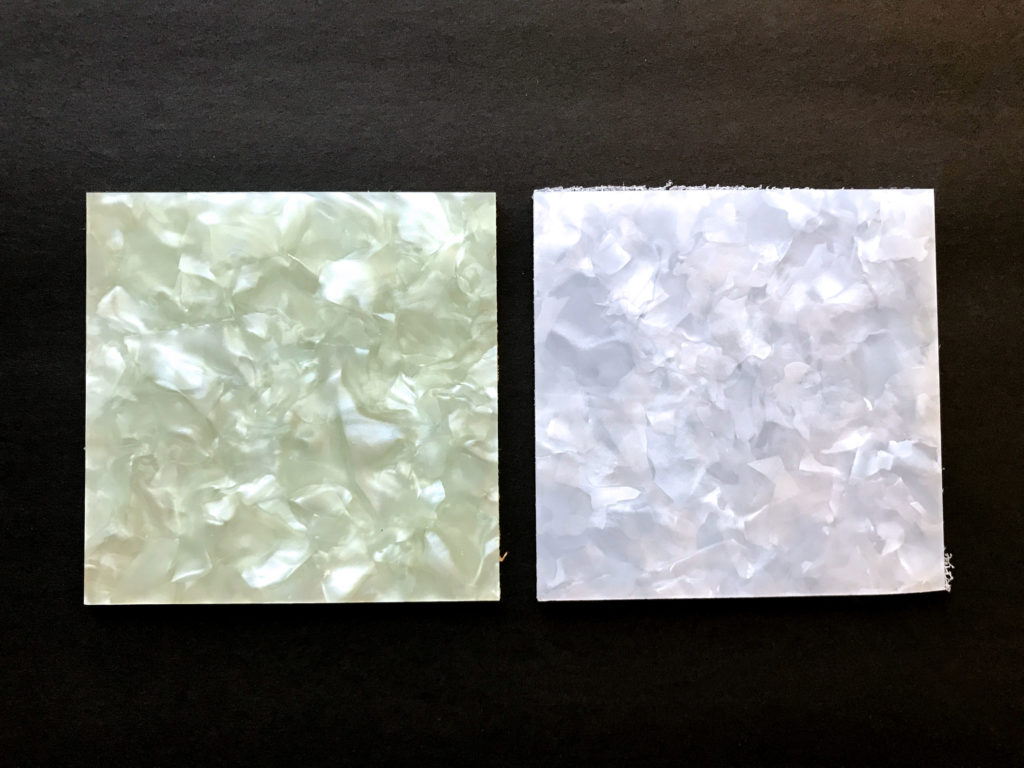

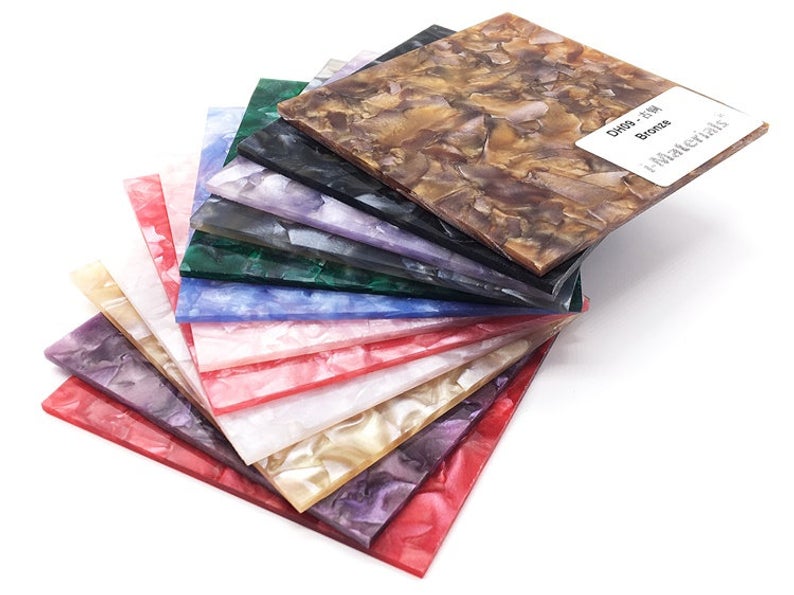

Pearlescent Mineral Crystal Sheets
DH01 – White

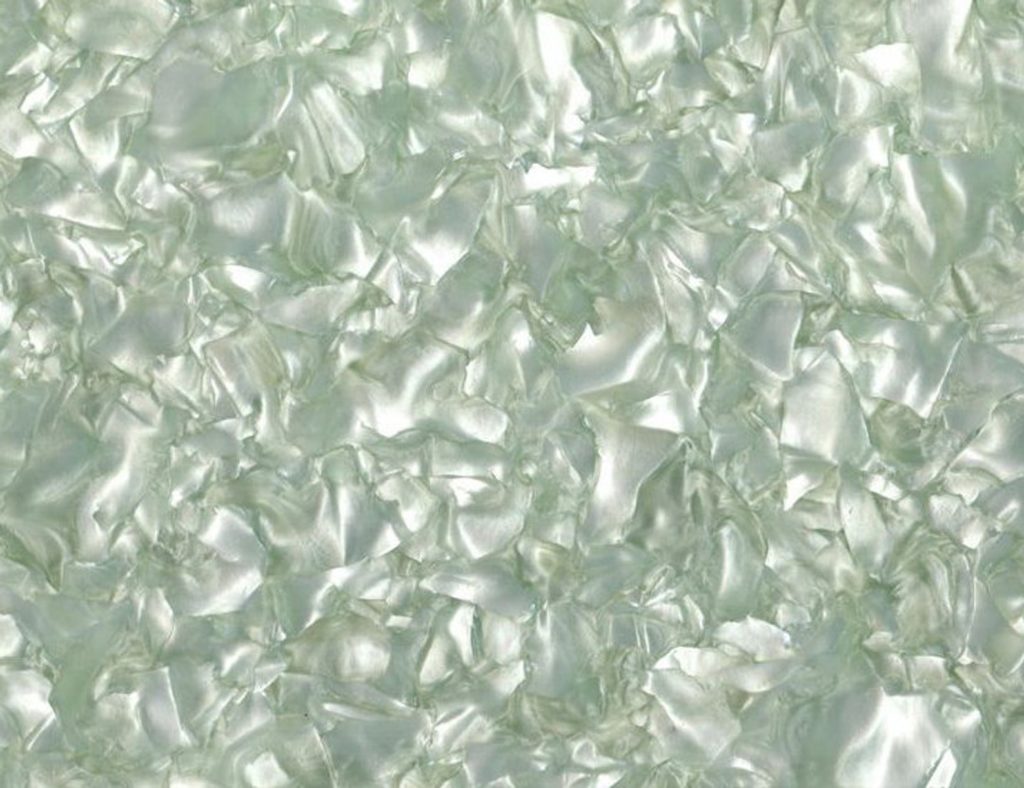

DH08 – Celadon

  • As stated in the seller’s description, this particular type of acrylic will scorch on a laser (you can’t clean it off). Just be aware! I did not experience this with any of the other lines of acrylic. See below:

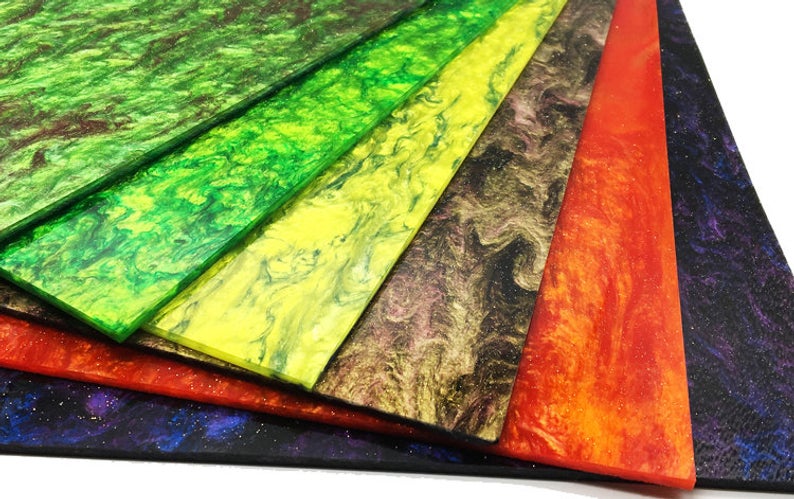

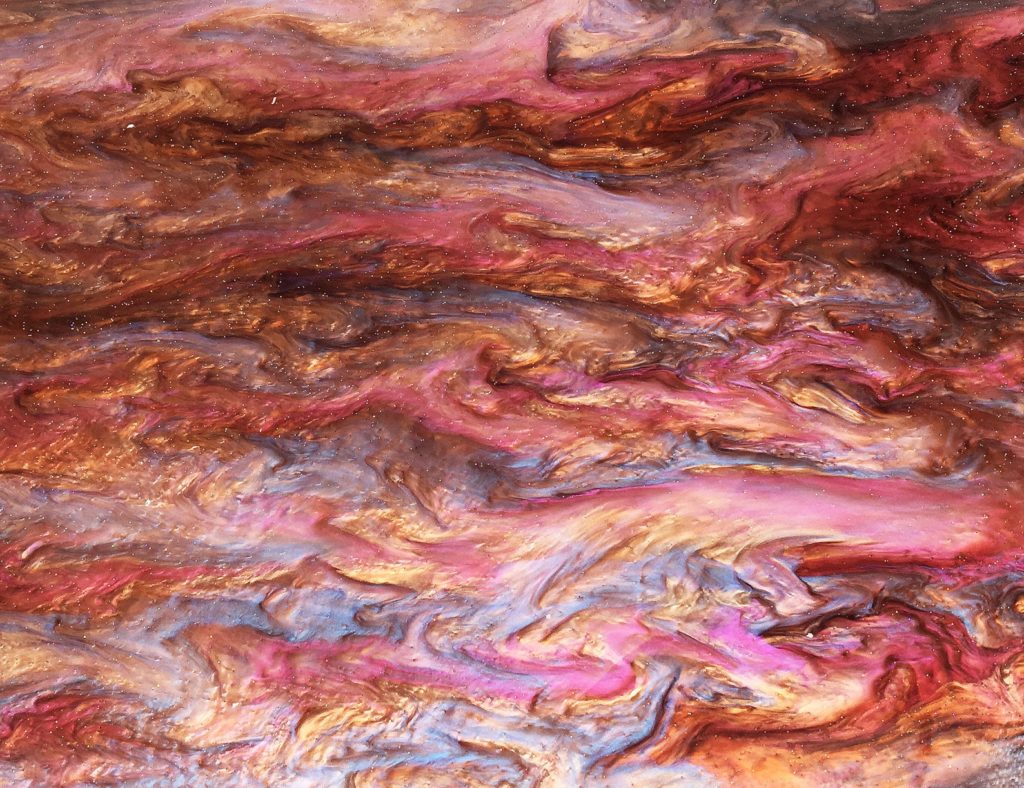

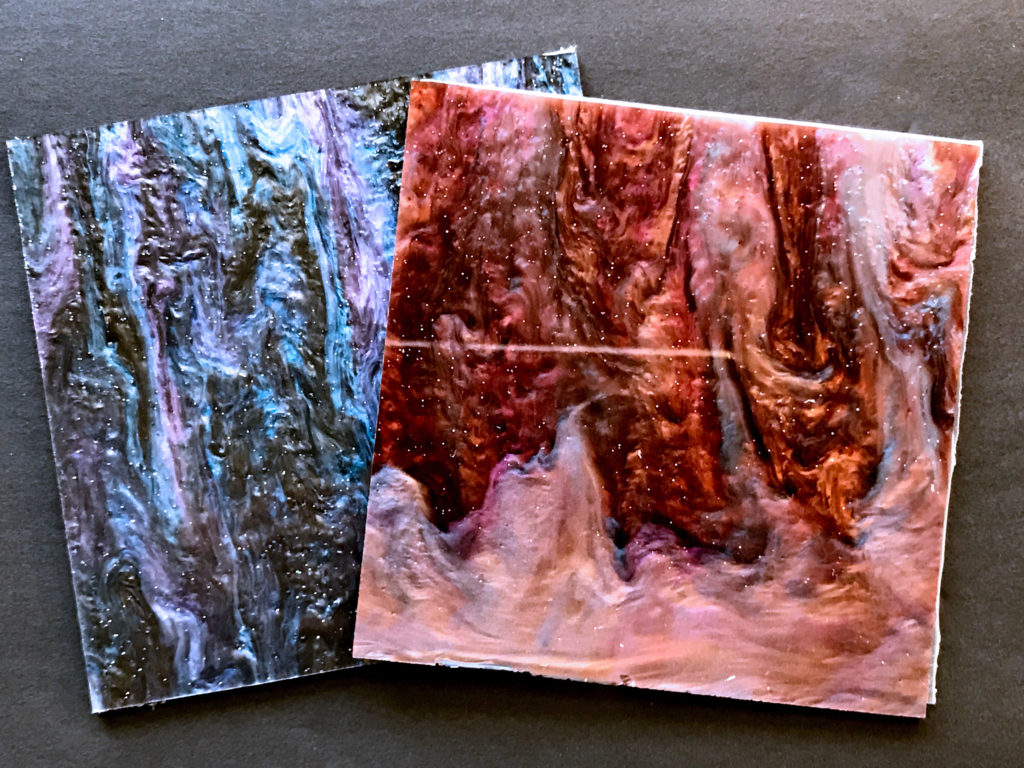

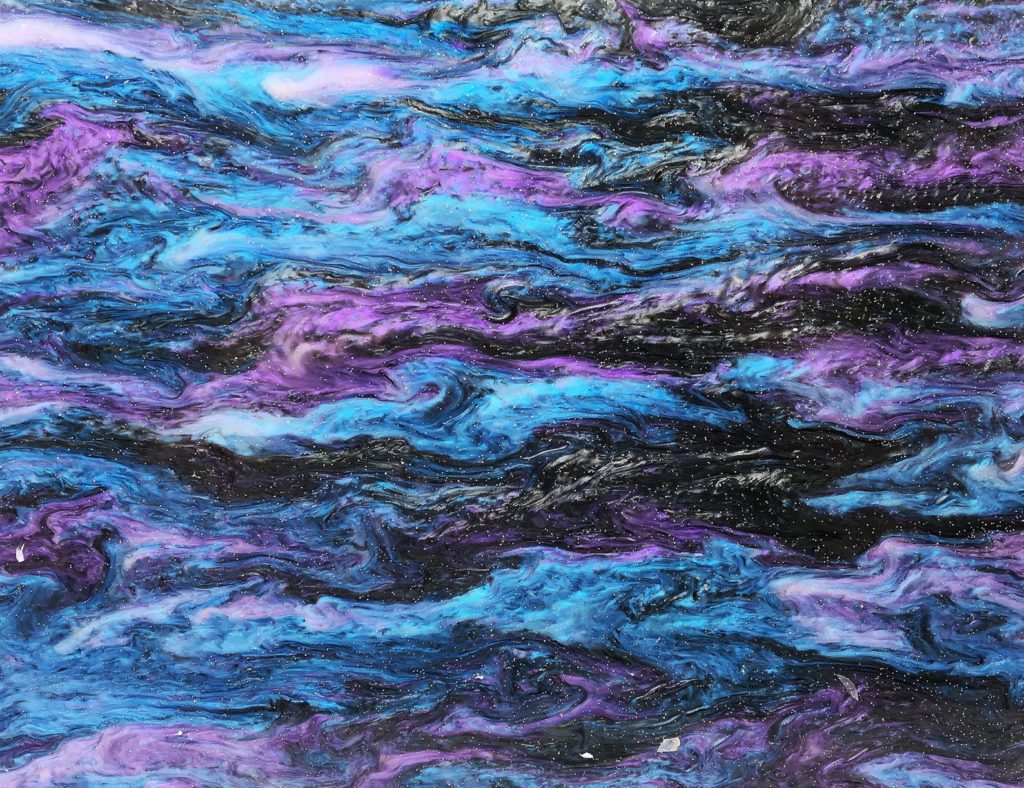

Ripple Glittering Sheets
RG14 – Ocean Blue
RG13 – Golden
RG16 – Dark Copper

Smoky Glittering Sheets
SG08 – Baby Pink
SG07 – Pearly White

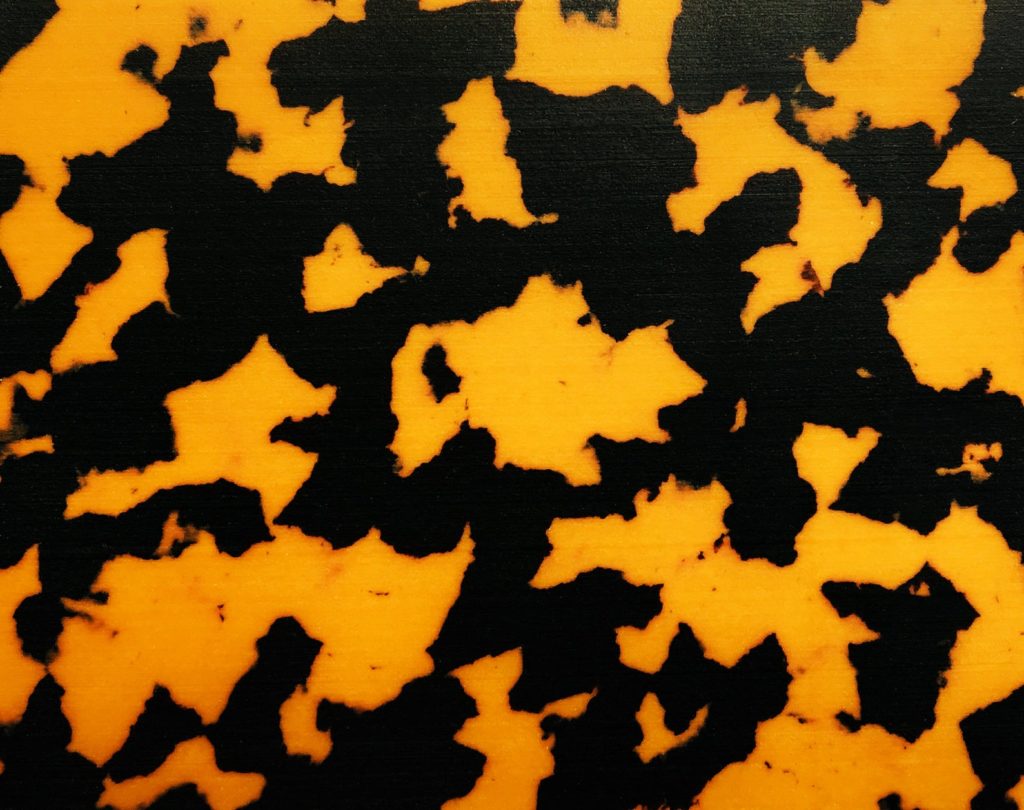

Celluloid Sheets
CL1005 Dark Leopard
CL2046 Zebra Golden
CL1047 Panda

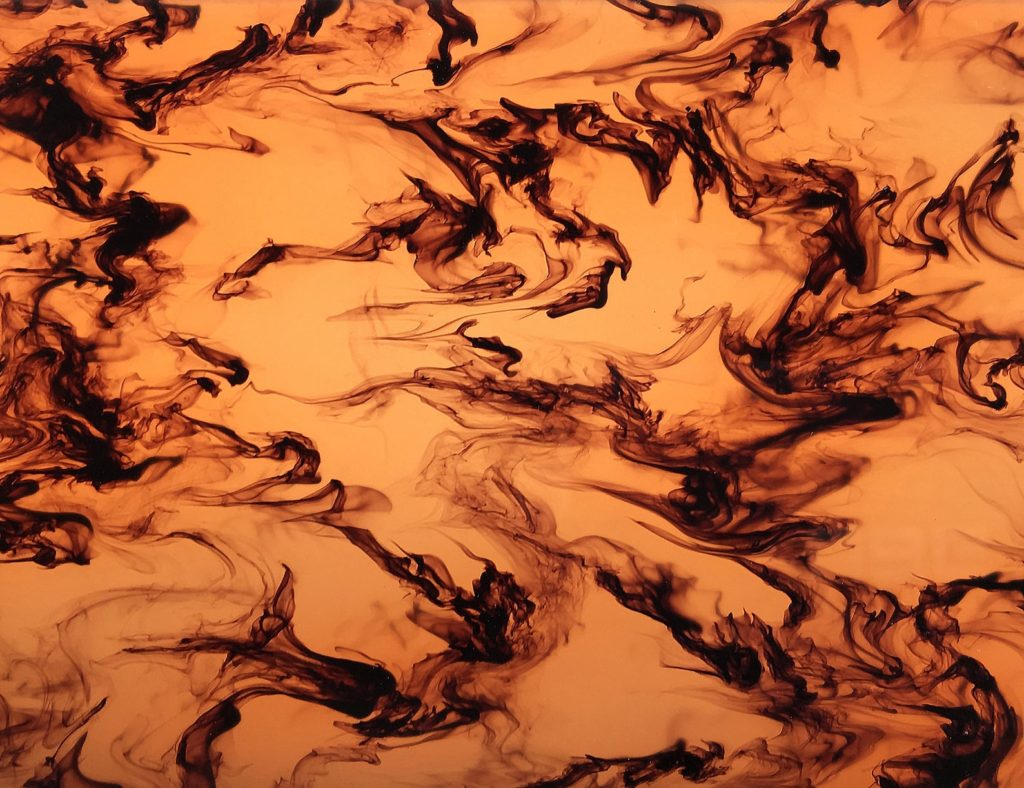

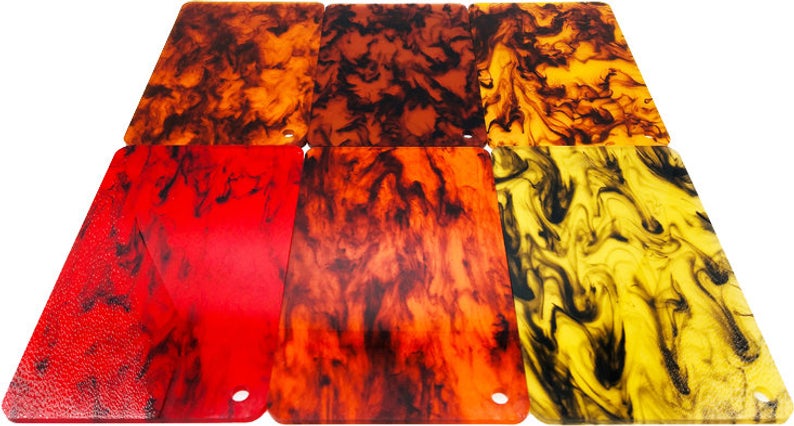

Translucent Inking Sheets
T102 – Bronze

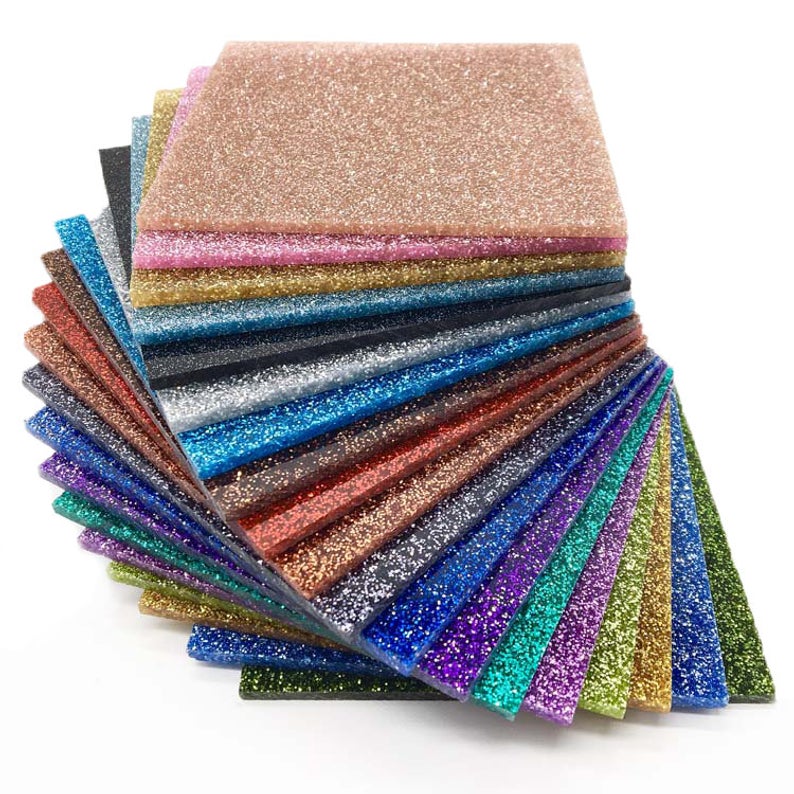

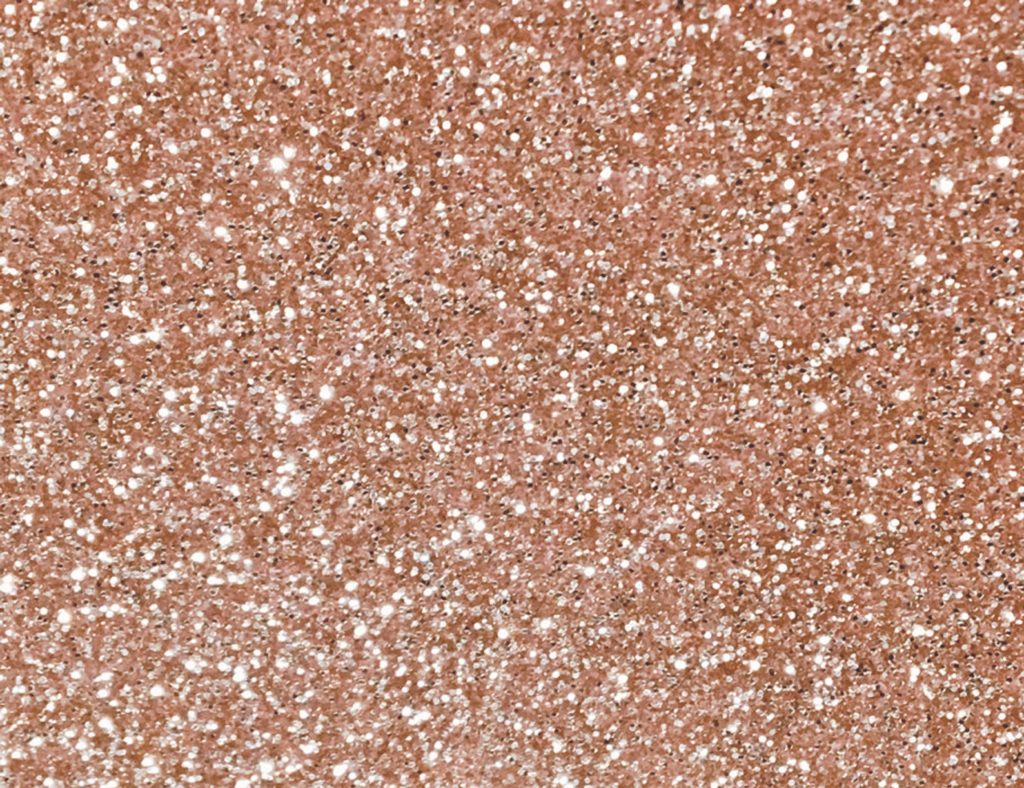

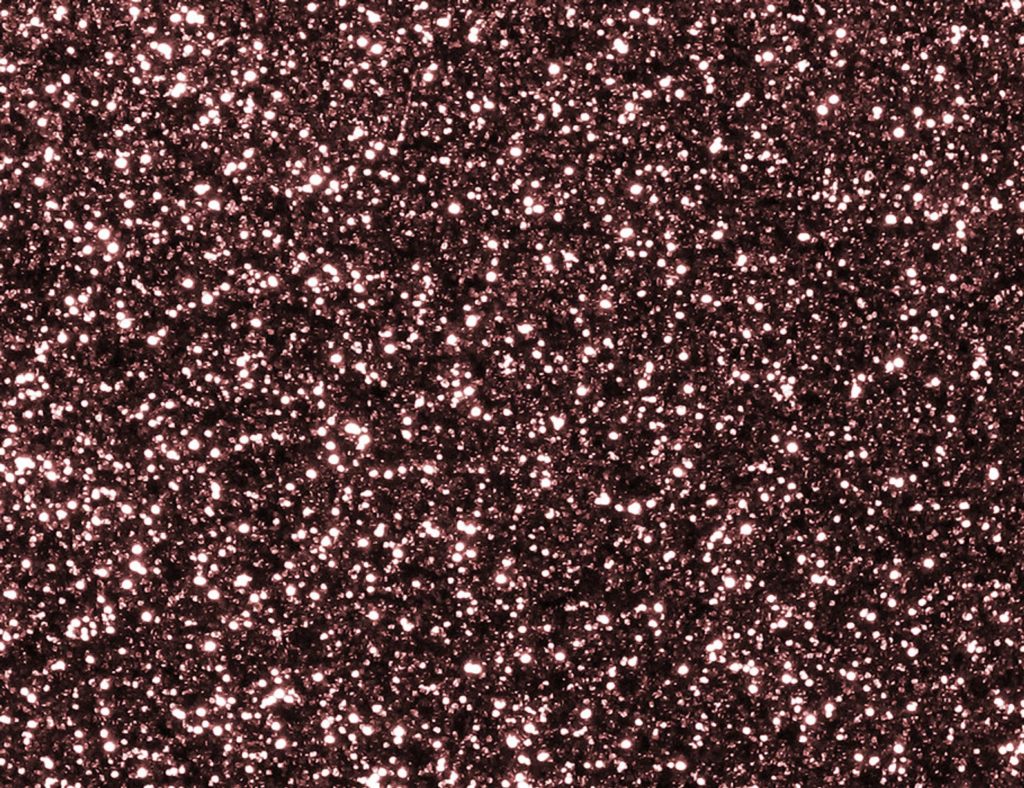

Two-Sided Premium Glittering Sheets
PG312A – Rose Golden
PG406A – Black Golden

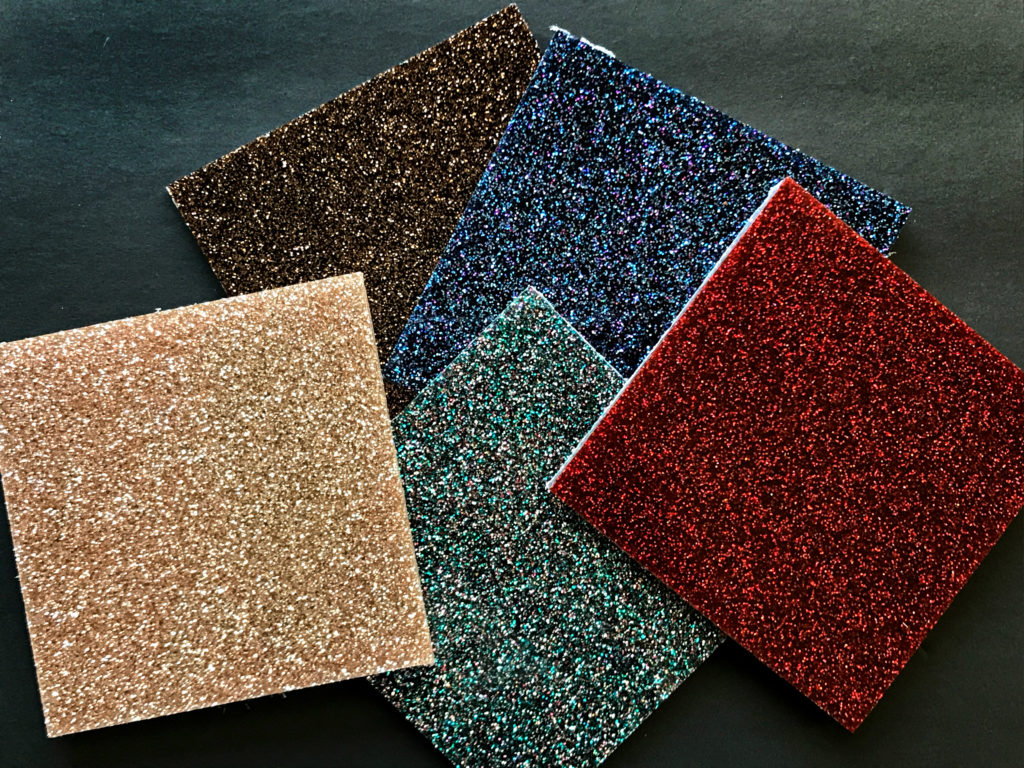

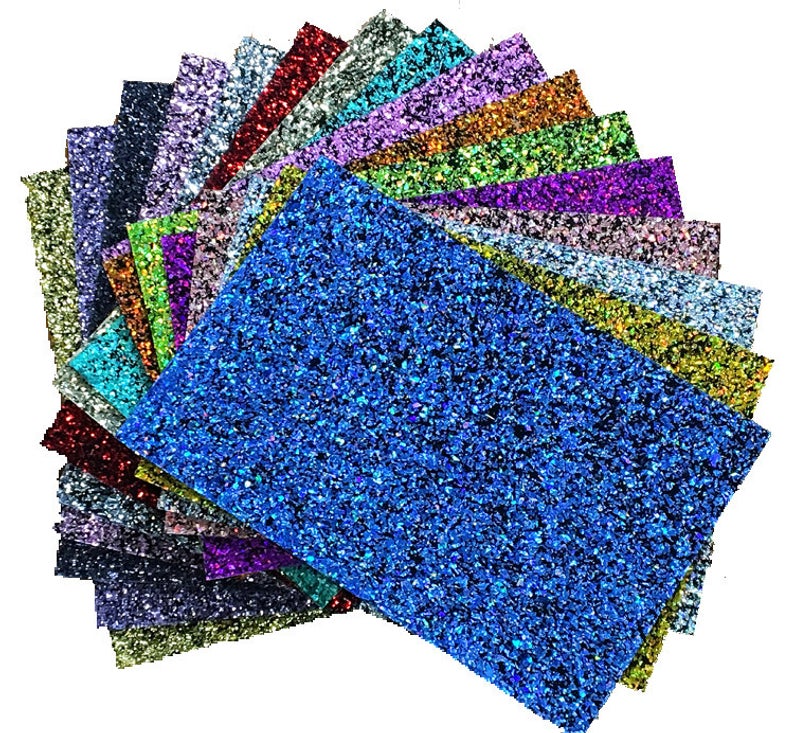

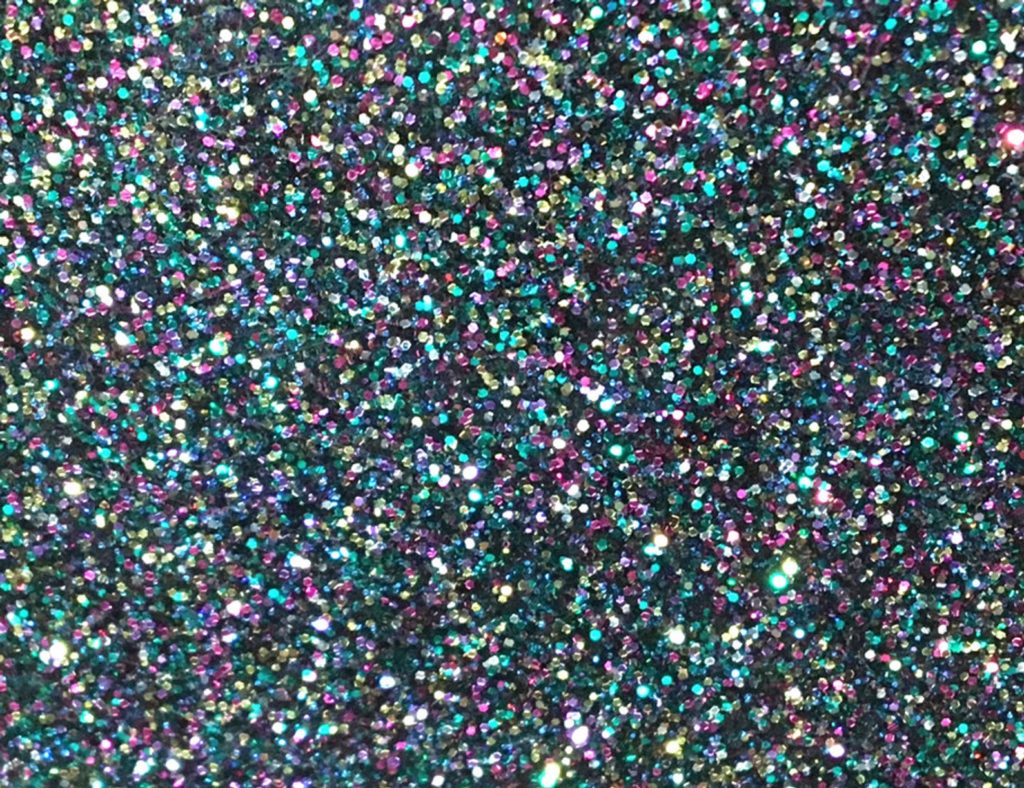

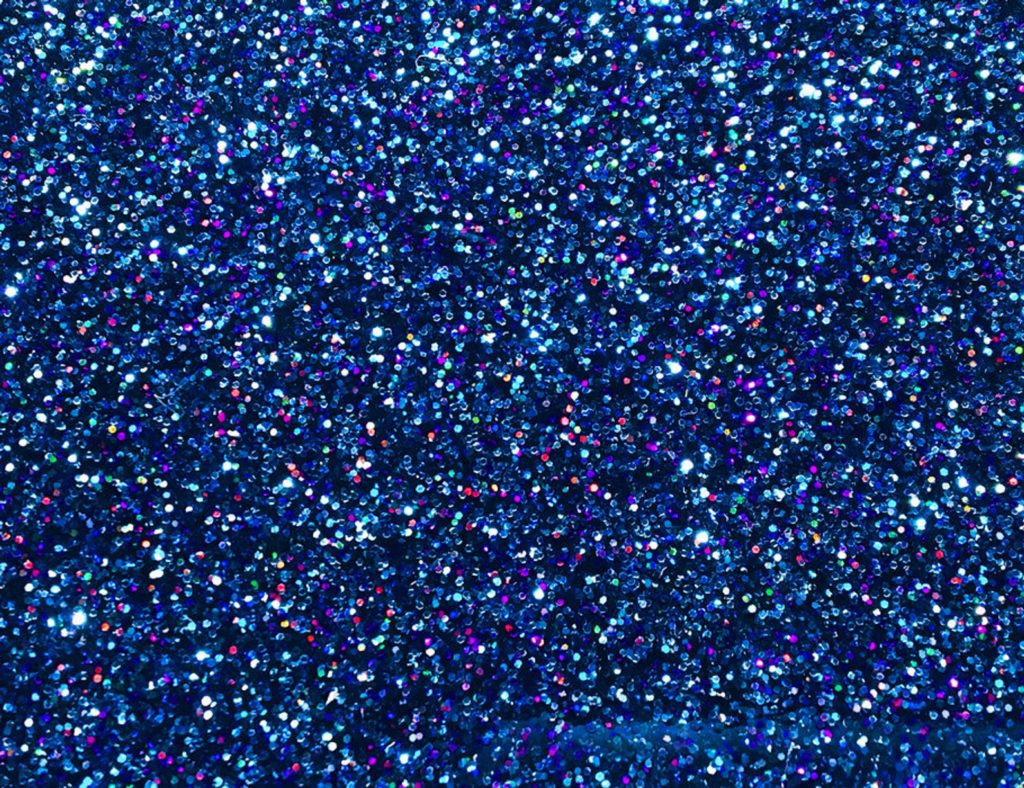

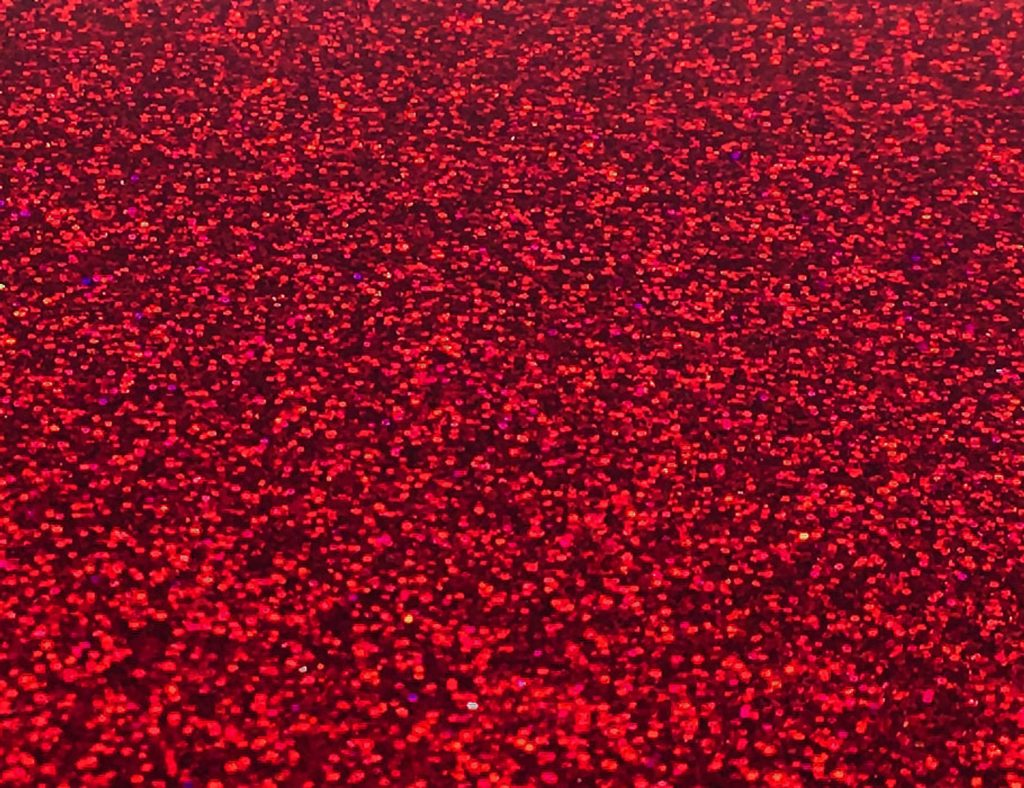

Two-Sided Holographic Glittering Sheets
PG0010H – Holographic Blue
PG1002H – Holographic Lead Grey
PG3040H – Holographic Wine Red

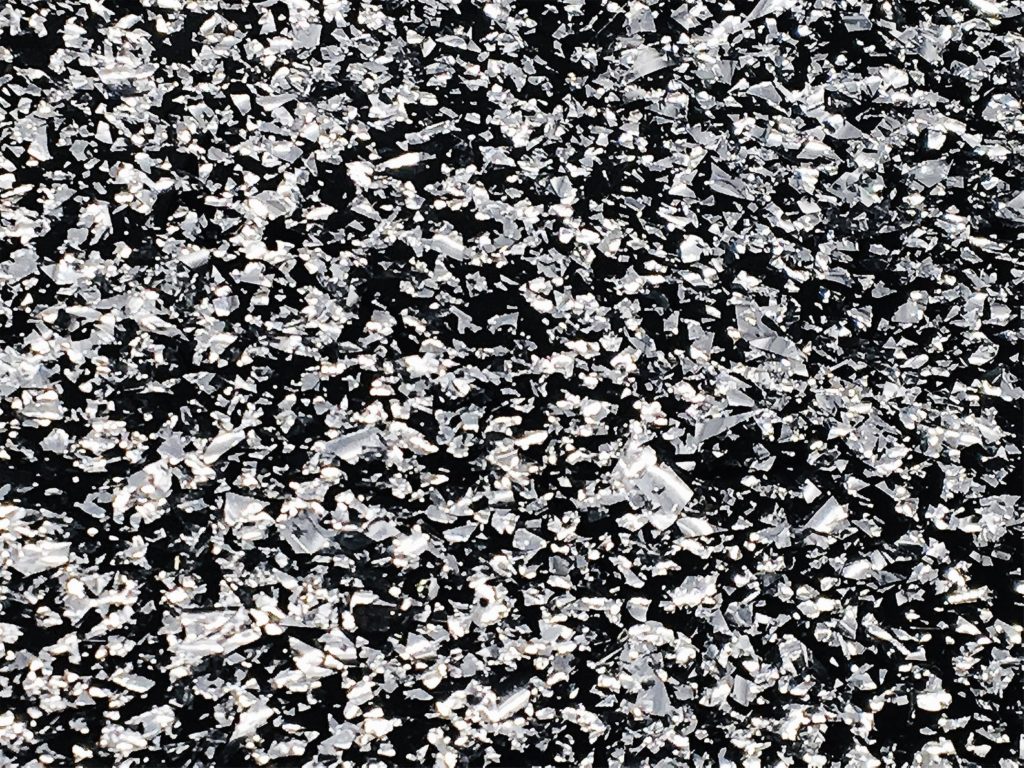

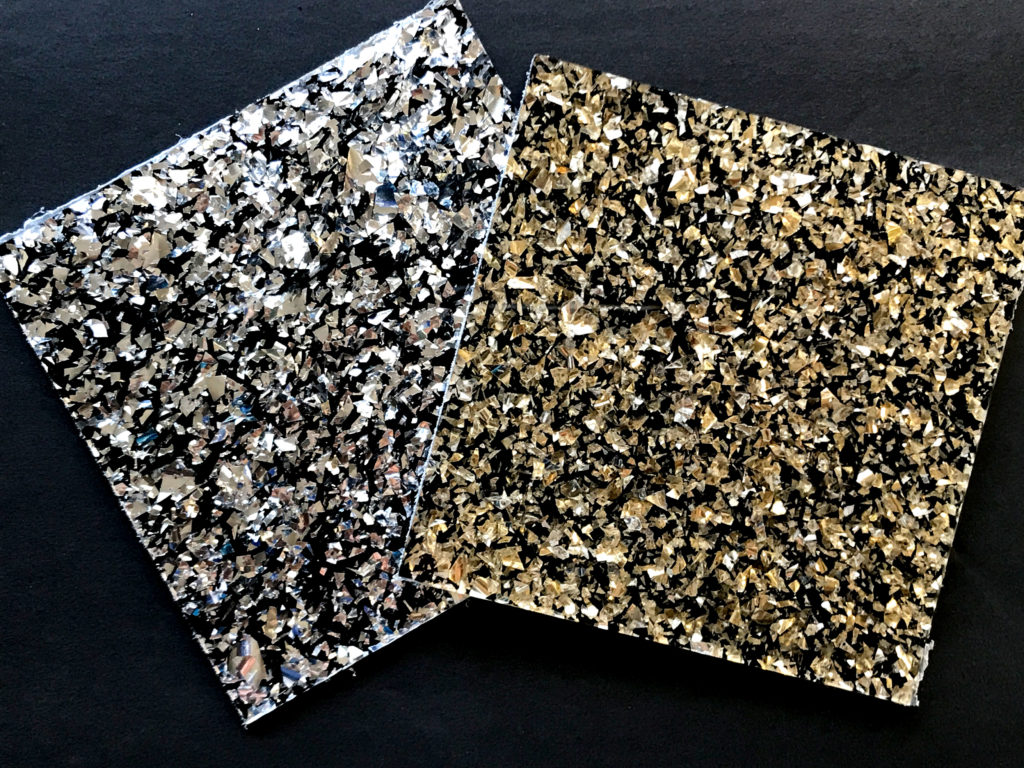

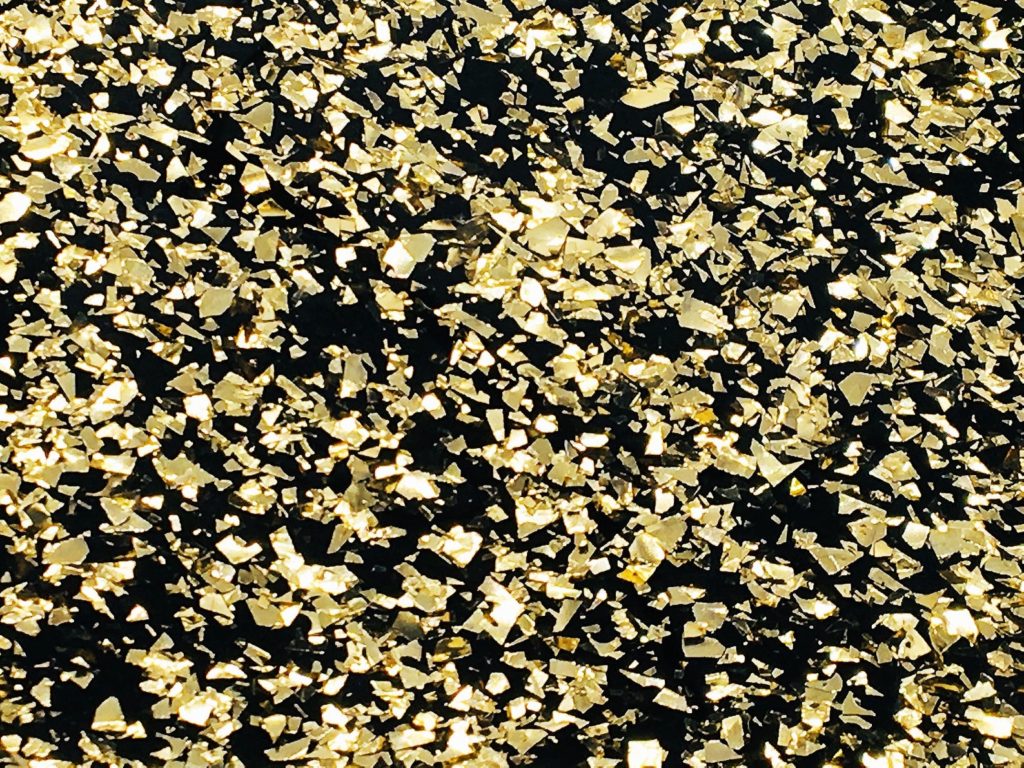

One-Sided Chunky Glittering Sheets
CB0212 – Light Golden
CB0100 – Silver

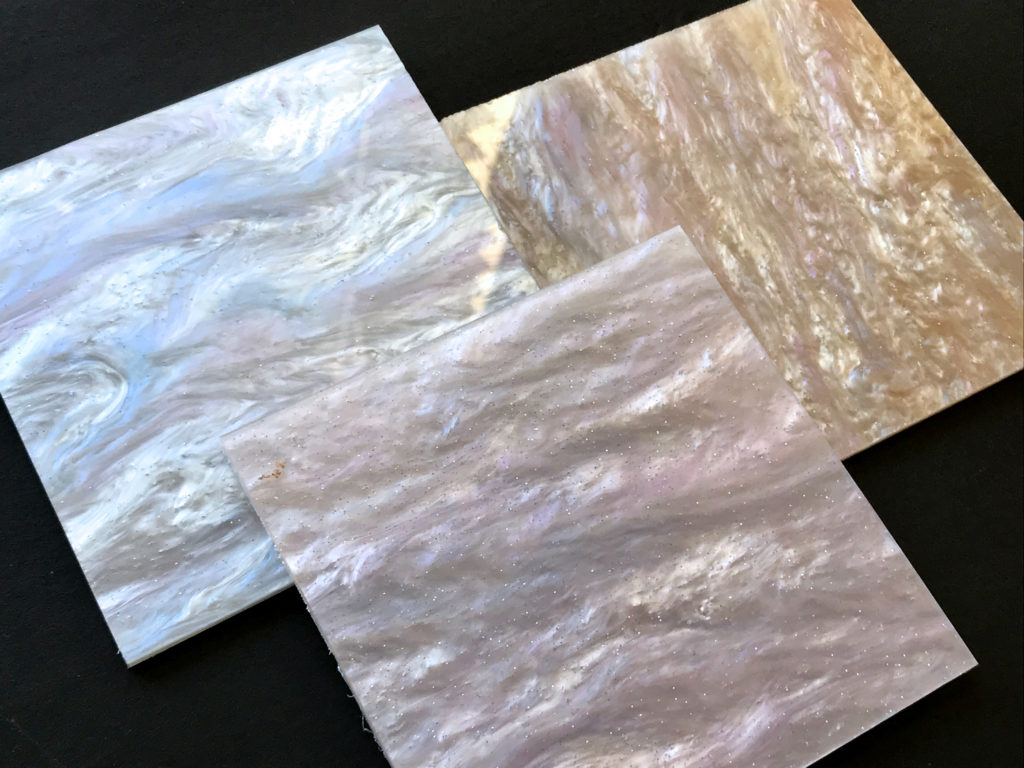

Iridescent Sheet

In the photo of this material online it looks more purple, but in person it has a lot more warm tones to it. When you remove the masking and look at it straight on you get the blue tones, but at an angle you get mostly oranges and reds.

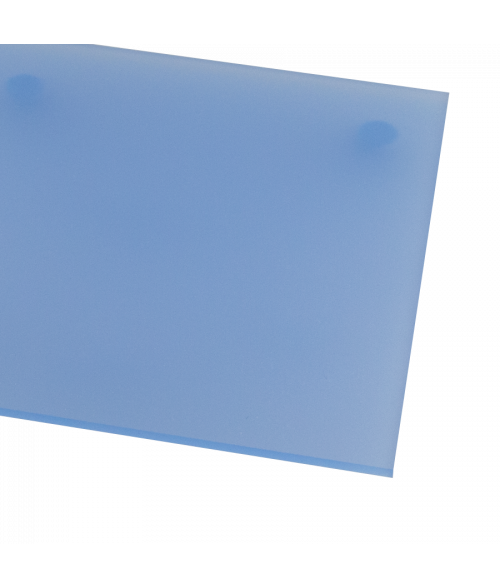

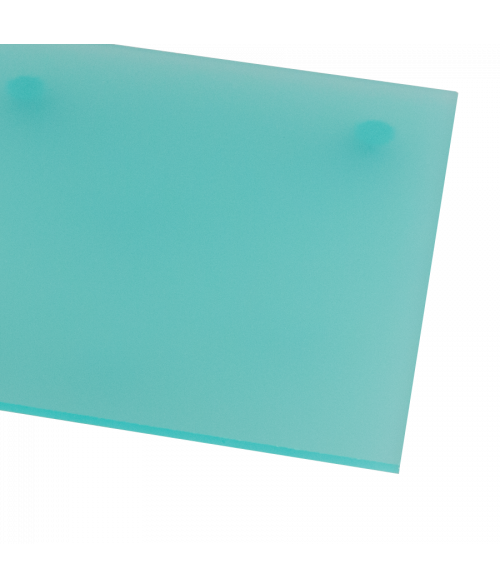

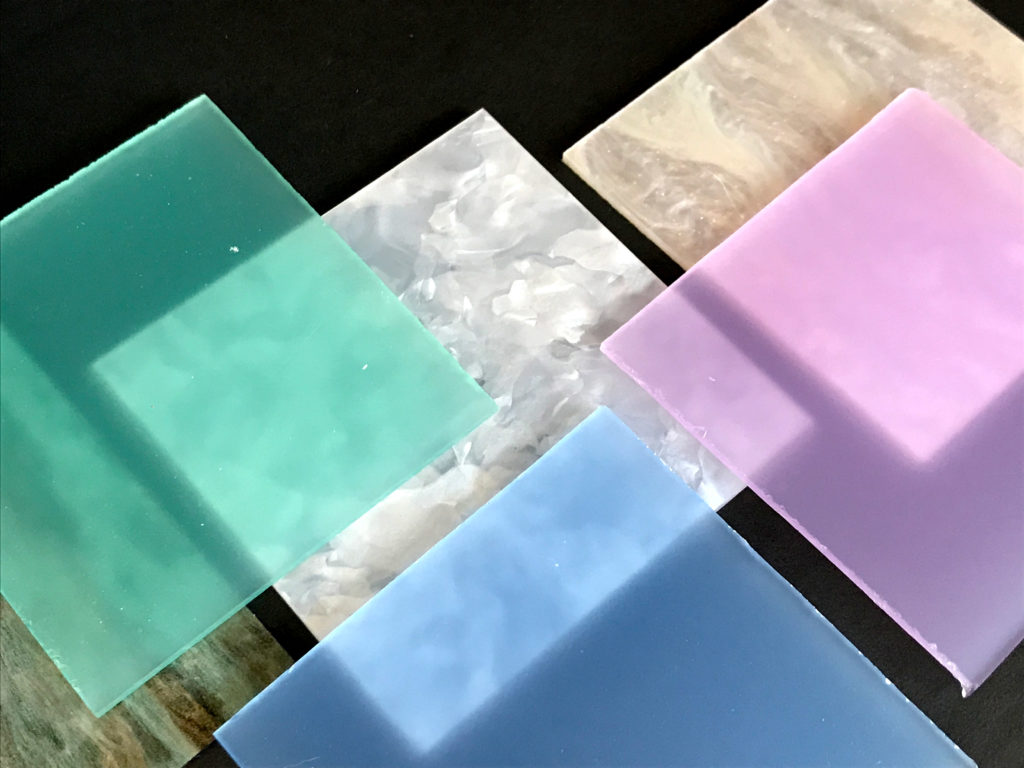

Rowmark Translucent
Caribbean (Teal)
Wisteria (Purple)
Wedgewood (Blue)

DESIGNING THE TEST

For this post I’m going to walk you through every step – the design, printing, and assembly of some earrings. I’ll also provide a free file towards the end so you can use it yourself.

For this project I wanted to take another crack at inset acrylics, so I did some very simple geometric designs and planned to try and pressure fit core pieces from my samples. This way I could test the acrylic with minimal waste and see how consistent it was.

First Step was Design. All of this is done in Illustrator so if that’s not what you’re using just skip all of this. After drawing up the shapes I went through the following steps:

1. Set the paths to outlines from the Object Panel

2. After setting to Outlines, you will have independent shapes. Fuse them together using UNITE in the PATHFINDER tool.

3. Now we need to create the voids or inner shapes so we can cut them separately. Place a colored rectangle behind the design. Select both the artwork, and the shape. Click DIVIDE in the PATHFINDER.

For advanced users you can also just use the direct selection tool to grab the inner shapes by their edges and copy and paste them onto the artboard.

4. Use the DIRECT SELECTION TOOL, grab the background (outer edge shape) and delete it. Then UNGROUP everything, by right-clicking and selecting Ungroup.

5. To make the hole, draw a circle where you want the hole (I guess at size generally). Select the circle and the black part of the design and then click MINUS FRONT, from the PATHFINDER.

Try not to grab the inner shapes. If you do sometimes they will disappear when you do this because the Pathfinder will try and cut them from your shape as well.

6. Grab the inner (orange) shapes and move them out of the shape. If you can’t grab the independently make sure you Ungrouped the shape.

7. Now we need to adjust for Kerf. The laser eats away a certain amount of material so if we want those inner shapes to fit tightly, we need to make them a bit thicker. Select the orange shapes and go to OBJECT > PATH > OFFSET PATH.

8. After A LOT of experimentation. I’ve found 3mm acrylic (1/8″) seems to require about .0075″ of kerf adjustment.

This varies from piece to piece and cut to cut. At .0075 it fits slightly snug but can still be popped out without too much effort. The problem was, if I went any higher it tended to crack the outer pieces, even when I was just hand fitting them together (no hammer). I’ve found it’s safer just to use a TEENY bit of glue, which I’ll show later.

For me the kerf is usually between .0065 and .0085″. I often have to test based on the specifics of the design as more delicate designs fit differently than thicker shapes.
I kept the joins on round. This still resulted in nice sharp corners at this scale, and I tend to prefer round of miter as sometimes miter will cut off the tips or make a really pointy end that chips off.

9. Merge your offset shape with your previous shape. Offset path makes a SECOND shape slightly larger than your original, so I typically just quickly Pathfinder>Unite them together so I don’t accidentally end up with multiple layered shapes in my file.

10. Move your shapes around to save space, then switch fills to outlines and save your file as an .SVG or .PDF

CUTTING SETTINGS

For me, I’ve found that the following settings and focus height worked perfectly for everything I cut.

If you’d like the file for these two earrings download it here (it already has the kerf adjustment applied (.0075″):

SPEED: 160
POWER: FULL
FOCUS HEIGHT: .12″

PRODUCTION

Now, on to the fun part. Actually cutting and assembling everything. For all of my samples, I made sure to mask them. Don’t be afraid to really burnish down the masking. If it peels up you have a fire risk.

Using an x-acto knife I just cut around the samples, flipped them, re-applied them, and then cut them out again.
I decided to work primarily with pairings between my patterned sheets and my translucent sheets to give good contrast. Also, I had much more the translucent material so I wasn’t as worried about wasting it.
I use a bone folder to really work down the masking paper.

All of my acrylics were the same height (or near enough some were .11″ and some were .12″. I often put more than one in the forge at a time. They were small enough that none of them were warped and thus they didn’t really need pins.

After cutting I fit the pieces together. In a few experiments, I tried bumping up the kerf adjustment to get a super tight fit. However, it often caused fractures in the material.

You’ll notice the cracking is mainly in the corners – where the pressure is very focused. One solution might have been to take down (file or clip) the tips, but this seemed laborious and prone to errors.

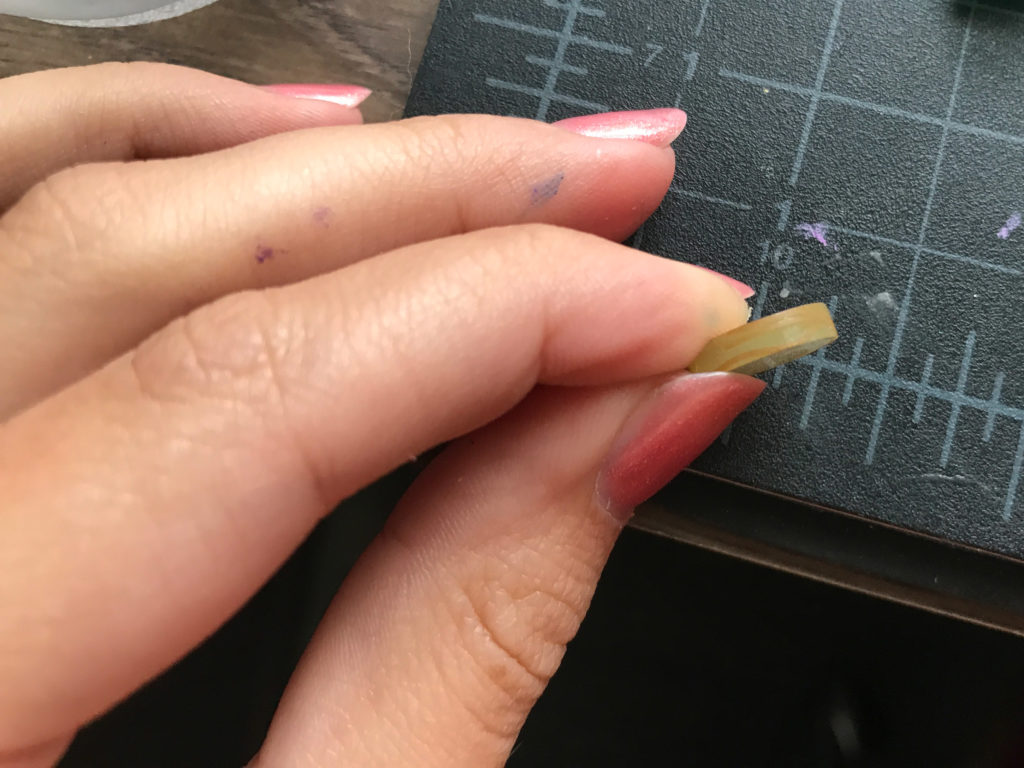

Here you can see the kerf – notice how the edge of the piece bevels down to a slightly wider point.
If one of those little tips is causing fitting issues you can use a pair of clippers/pliers to just lightly snip that super sharp point.

My final solution was to stick with the .0075″ adjustment and use a bit of glue when pressing the pieces in. Just keep the masking on so it doesn’t get on your visible surfaces.

I prefer PVA or Weldbond (a type of PVA) over using a solvent-based acrylic weld as the acrylic weld tends to seep under masking and ruin the nice finish on the acrylic. Solvent-based acrylic welds melt and re-fuse the acrylic so if it even TOUCHES somewhere you don’t want it, it will ruin the acrylic’s finish.
With PVA or Weld Bond you can just wipe away the excess. You don’t need quite as much I used and you don’t need it everywhere, just a bit to keep the pieces from getting knocked out. With jewelry the pieces don’t typically get a TON of abuse, so you can probably just get away with the pressure fit. This is just an additional precaution.
After removing the masking, this is the result. You can see the celluloid sheets cut perfectly and have such a fun finish to them.

The cracking of the acrylic was particularly annoying to me, so I had another idea as well. I wondered if maybe wood might have better flex/give and be less prone to cracking. I gave it a try and was really pleased with the results. The .0075 adjustment still worked great, though I could maybe have gone up just a bit.

I removed the masking from the wood but left it on the acrylic…
Then I oiled the wood and removed the acrylic masking. You could also probably oil the wood before fitting the acrylic, but this was just as easy.
I tried this technique with the grain in both directions. I also loved the idea of being able to mix and match acrylic pieces. This solid walnut was purchased from Amazon, and I’ve loved it so far.

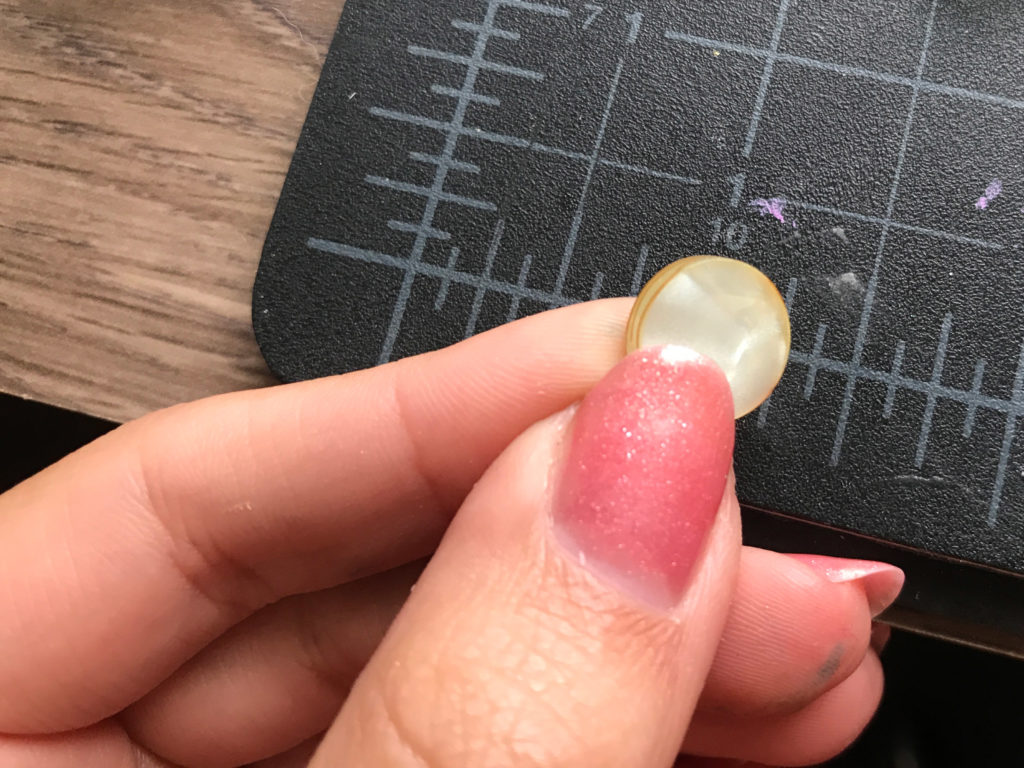

One of the only other issues I had, was that one of the lighter colors of mineral crystal acrylics tended to get brown staining on the edges. It seemed like there was some sort of inlay that tended to burn with the laser (possibly celluloid). I didn’t notice this with any of the swirled, glitter, or ripple colors I tested. You can sort of see the burnt look in the image below.

The burning wasn’t bad, but if the edges will be exposed I would avoid this pattern of material.

THE RESULTS

A great way to use up small samples or scraps is to make stud earrings. Here you can see the tortoiseshell, iridescent, and white phoenix acrylics. I cut those without masking and they came out just perfect. These are purely pressure fit (circles tend to work great for that) at .0078 offset.

CONCLUSIONS

I didn’t test EVERY sample yet, but so far I’m really pleased. I tried to make sure to cut at least one of each style (swirly ripple type, glitter type, mineral crystal sheets, chunky glitter type, celluloid, and translucent). I would definitely order material from iMaterials again. I do want to mention that the samples seemed to have been cut down on a table saw – some of the edges were chipped – so just be aware. I don’t know if that would be an issue on the larger sheets, but as far as the quality of the acrylic and its versatility I was really happy with it.

The pricing can be slightly unclear. Most colors seem to have a minimum order at each size option. For example, there is an option for 3 sheets of 16×12″ is $54 meaning they are $18 each, but if you go the sample area you can get a single sheet of that same color for $27. This price difference is likely due to the shipping cost – which they eat on their end by offering free shipping. I feel pretty confident you could have iMaterials do a custom order for you you could mix and match sheets at the cheaper price, but I’m not sure, just ask – Ricky (the guy who runs the store) is really nice and helpful.

Take some time to explore and see the different pricing options. You can also order samples packs of their full line for each style.

WHERE TO GET THE MATERIALS

iMaterials |
This is where I purchased most of my unique acrylic samples. They ship from China, but it wasn’t a super long wait in my opinion. They have neon, mirror, swirled, celluloid, basically anything you can think of.

Johnson Plastics |
For the Rowmark Translucent (and an amazing variety of two-tone, solid, and mirrors finishes) I bought from Johnson Plastic.

My FAVORITE Glue – Weldbond |
This is what I used in this post – works well on both acrylic and wood. As a water-soluble glue, it can easily be cleaned away if it squishes out from your inset pieces (which it will – trust me).

The Walnut Sheets |
This is the walnut I purchased and used for these samples.
